Product Details
＋

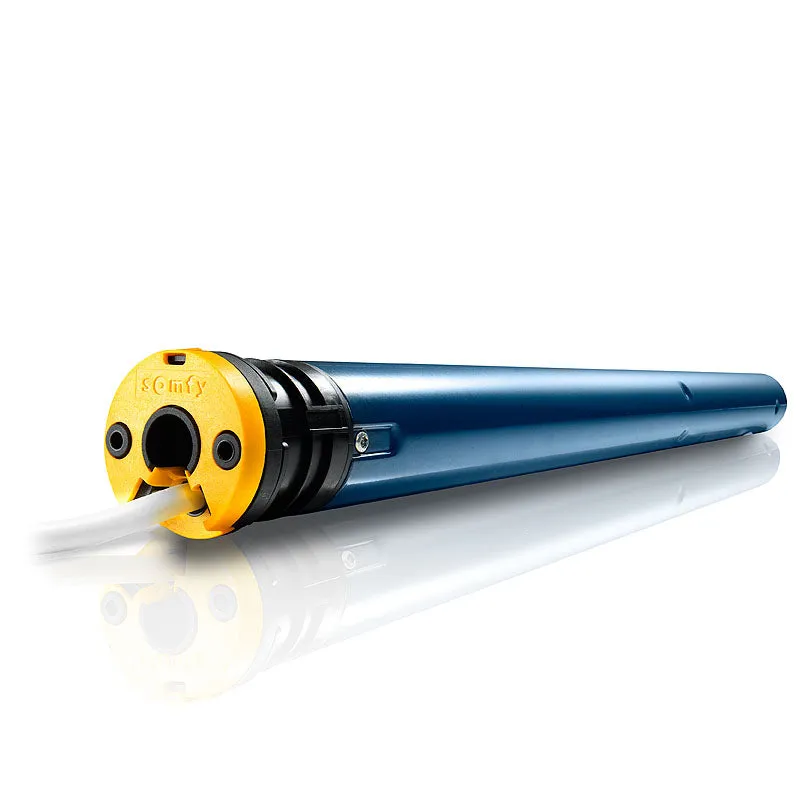

The Sonesse® 40 range is putting window coverings in motion with quiet precision. Ideal for variety of interior window covering applications.
Support
Technical Information
TECHNOLOGY |
|
|---|---|
| Radio Frequency | 433,42 MHz |
| Capacity of memory | 12 different codes plus 3 wireless sensors |
| Coding | Rolling code 16 million of possibilities |
ELECTRICAL |
|
|---|---|
| Antenna | Integrated |
| Consumption during operation | 120 W |
| Minimum voltage | 207 V |
| Maximum Voltage | 253 V |
| Rated current | 0.98 A |
| Nominal Voltage / Frequency | 230V AC 50 Hz |
MECHANICAL |
|
|---|---|
| Capacity of the limit switch unit | 250 turns |
| Type of limit switch unit | Electronic |

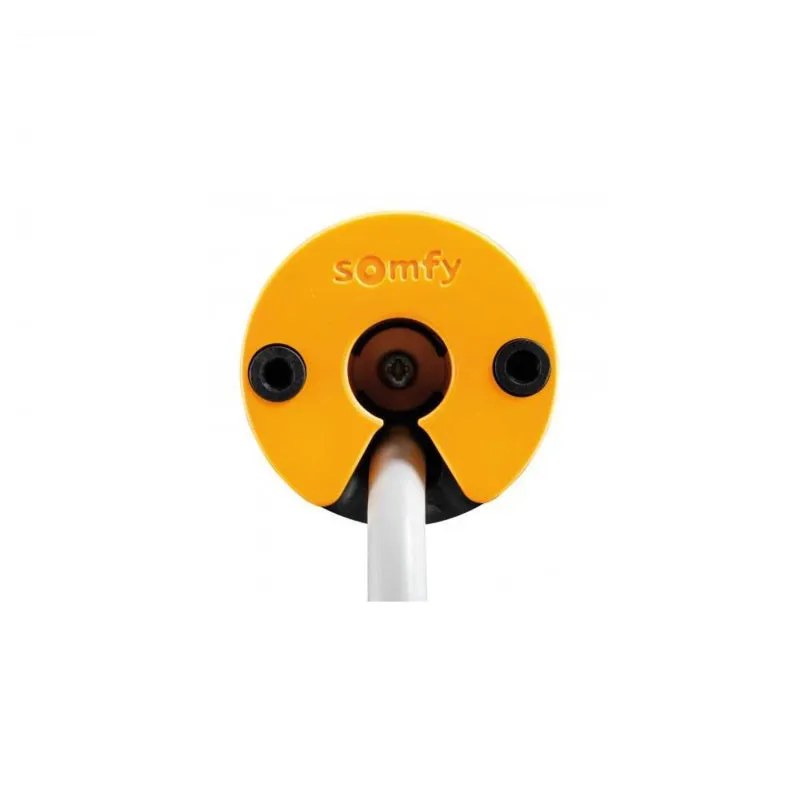

| Type of head | Round |
| Nominal Speed | 12 rpm |
| Nominal Torque | 9 Nm |
STANDARD |
|
|---|---|
| Approval | RCM |
| Protection Index | IP44 |
| Insulation class | Class II |
CABLE |
|
|---|---|
| Cable type | PVC |
| Wire section | 0.75 mm² |
| Color | White |
| Wire Length | 3 m |
| Number of wires of the cable | 2 |
DIMENSION |
|
|---|---|
| Length (L1) | 535 mm |
| Weight | 1.35 Kg |
| Overall length (L3) | 548 mm |
| Riveting position distance (L2) | 511 mm |
