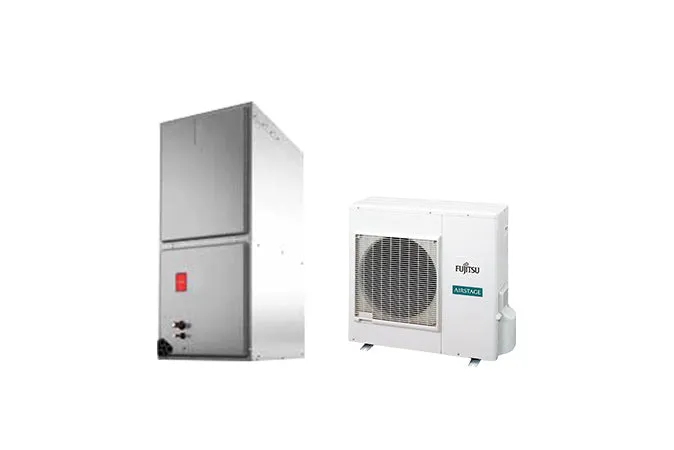

Fujitsu 30,000 BTU 18.5 SEER Multi-Position Air Handler Single Zone System is the perfect product to replace your inefficient unitary ducted system. This particular system is 4x quieter and much more efficient than your traditional heat pump. This system comes with an out of the box 7 year compressor / 5 years part warranty, 10 year warranty if its installed by a licensed HVAC tech and registered within 60 days, or a 12 year warranty if it's installed by a Fujitsu Elite contractor.

General Information

• Unit Type: Multi-Position Air Handler
• Product Line: Multi-Position Infinite Comfort
• Operating Mode: Cooling & Heating
• Low Ambient Heat: No
• Number of Zones: 1
• Unit Size: 30,000 BTU
• Line Set Size: 3/8" x 5/8"

Package Includes

• Indoor Unit: AMUG30LMAS
• Remote Controller Not Included
• Outdoor Unit AOU30RGLX

Features

• Manage your unit from anywhere using FGAir - accessory wifi module needed (UTY-TFSXZ2)
• Static pressure up to 1.0" W.G, automatic static pressure detection for install conditions
• True Multi-Position Design - up flow, down flow, and horizontal flow
• Indoor sound levels as low as 24 dBA
• Uses Anti-corrosive coil coating on outdoor unit

Indoor Specs

• Moisture Removal: 7.2 Pt./h
• Air Circulation Modes: Hi, Medium, Low, Quiet
• Air Mode CFMs: 800, 670, 590, 310
• Indoor Sound Levels (dBs,Cooling/Heating): 42/39, 37/36, 33/32, 26/25
• Net Weight: 104 lbs
• Dimensions (HxWxD): 42 8/16", 21", 21 11/16"
• Compatible Controllers: Wired Remote Controller (UTY-RNRUZ), Simple Remote Controller (UTY-RSRY)
• Static Pressure in W.C.: 0-1.0

Outdoor Specs

• Voltage: 208-230V
• Circuit Breaker: 30 Amps
• Net Weight: 134 lbs
• Dimensions (HxWxD): 32 11/16", 35 7/16", 13"
• Minimum Line-set Length: 16'
• Maximum Line-Set Length: 164'
• Max Vert Diff: 98'
• Outdoor Line-Set Ports: 3/8" x 5/8"

Performance

• Cooling Capacity 30,000 BTU
• Min-Max Cooling: 9,600-35,000 BTU
• Heating Capacity 32,000 BTU
• Min-Max Heating: 9,200 - 39,000 BTU
• SEER: 18.5
• HSPF: 10.3
• EER: 10.1
• Heating Minimum & Maximum Temp: -5 F - 75 F
• Cooling Minimum & Maximum Temp: 14 F - 115 F
• Room Cooling/Heating Sizing: up to 1,250 sq ft
