5.5 GPM @ 45PSI, 100 PSI MAX - Rated up to 2500 HP
Developed for high horsepower, high flow applications, we are proud to introduce our PRO SERIES line of fuel system components. At the center of the new series is our 40501 Brushless Spur Gear Pump, engineered with unmatched experience in brushless fuel pump technology. To support this massive flow pump, we are also introducing our new 868xx PRO series in-line fuel filters capable of 10GPM. And to round it out, we’ve given our 565xx Series fuel pressure regulator a new look and added it’s great features to the PRO SERIES line.
POWER AND EFFICIENCY AT ITS BEST!

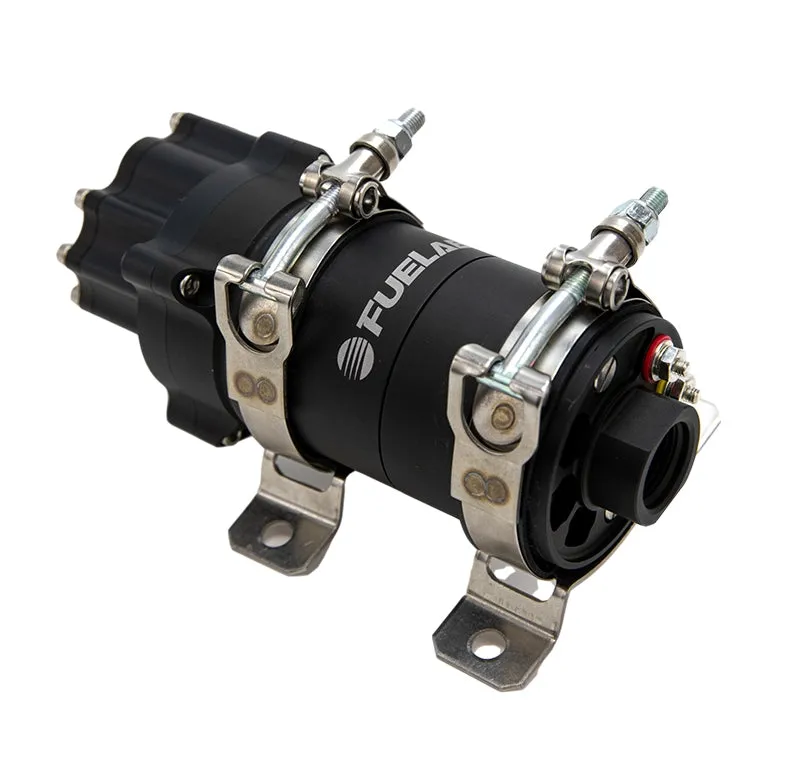

This variable speed gear pump is built to handle up to 3600HP using multiple fuels, all while holding up to the toughest run conditions enthusiasts can throw at us.
POWER RATINGS:
- Up to 3600HP N/A on Gas
- Up to 2800HP N/A on E85
- Up to 1450HP N/A on Methanol
Pump Features
- Compatible with gasoline, diesel, ethanol and methanol
- High precision spur gear pumping mechanism
- -12AN Inlet and -10AN outlet Ports
- Backed by a limited lifetime warranty
Motor Features
- Lightweight super-efficient DC brushless motor reduces current draw
- Low mass rotor for high speed reaction to changes in speed and flow
- Powerful high flux Neodymium rare earth magnets
- No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
- Wet motor design, no dynamic shaft seals that can wear out
Electronic Features
- Internal Speed Controller for Variable flow operation
- 12 to 24 volt vehicle electrical system compatibility
- Accepts PWM input for speed control
- No expensive add-on voltage regulators or pump controllers required!
- Continuous duty - motor speed can be adjusted to meet fuel demand
Construction Features
- Compact, powerful and lightweight - 3.5lbs, overall length 7.2", diameter 3.31"
- Billet Aluminum construction with Anodize per MIL-A-8625, Type II
- High quality T-Style Mounting Brackets included
- Long Life multi-fuel compatible Fluorosilicone static seals
Pulse Width Modulation Compatibility (PWM)
- Compatible with most aftermarket ECU's with PWM output frequency
- Compatible from 100Hz to 5000Hz
- AEM
- ECU Masters
- Fueltech
- Haltech
- Holley
- Link Engine Management
- Megasquirt
Available in MATTE BLACK ONLY
